Ultra 10 – The Big, Small, Powerful, Monitoring Solution.
Ultra 10 hits the sweet spot in power, performance and size, between production monitors and our Ultra Bright Series, with 6G-SDI architecture, unprecedented weather and shock-resistance, new multi-function knobs, and more.

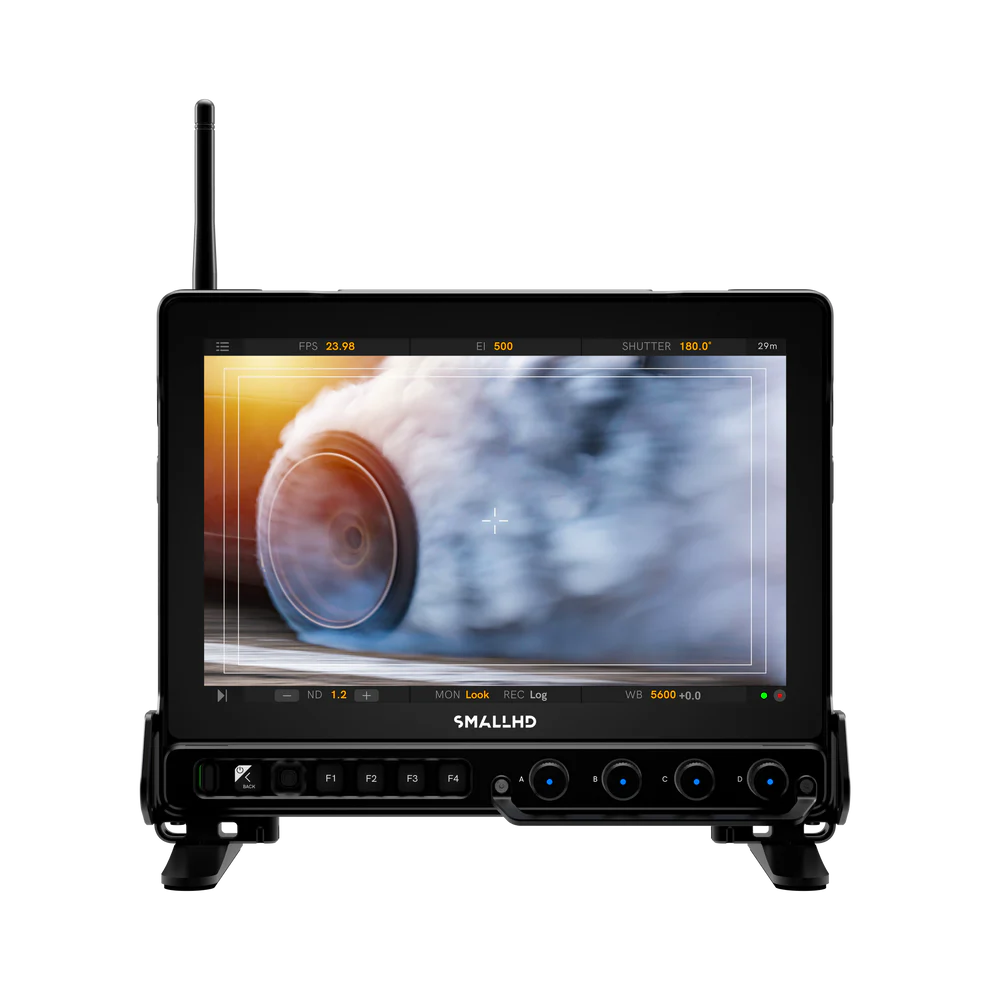

Ultra 10
The largest touchscreen monitor SmallHD have ever made.
Portable, powerful, and rugged, the Ultra 10 packs 2000nits of brightness, 6G-SDI architecture, intuitive multi-function rotary encoder knobs, and the full power of PageOS into a 10-inch display.
Perfect for focus pullers, pursuit vehicles, director’s cages, DITs, multi-camera studios, and anyone who desires maximum flexibility from their monitor.
| 2000nits
Max Brightness |
6G-SDI
4Kp30 End-to-End Workflows |
| IP54
Weatherproof Rating |
Camera Control
Canon, Sony, ARRI, RED® |
| 1920×1200
Resolution |
4x Dials
Multi-Function Tactile Control |
| Teradek Wireless
Built-in 6GHz Wireless Video Receivers |
WiFi Connectivity
Remotely manage your monitor using the Fleet Control App |
Built-in Wireless Video
Teradek Bolt 6 arrives, fully contained, for the ultra-bright 10-inch monitor.
Rugged and protected from the elements, this is a monitor that can withstand even the most destructive directors.
Built-in Bolt 6 units utilize the clear airwaves of the newly-open 6GHz spectrum, with receiver models that are compatible with any Teradek Bolt 6, and
backwards-compatible with any Bolt 4K system in 5GHz mode.
PageOS
Powerful new tools – unprecedented creative control.
PageOS is the first and only monitoring solution of its kind: an advanced, page-based software toolset with an intuitive UI/UX that gives you full control over colour, exposure, camera, LUTs, and so much more.
Experience effortless navigation, exclusive industry-first integrated tools, and limitless creative possibilities.
| Technical Specs | |
|---|---|
| Environmental | |
| IP Rating | IP54 |
| Item Weight (oz) | 52.8 |
| Height (in) | 1.73 |
| Width (in) | 9.92 |
| Length/Depth (in) | 10.89 |
| Display | |
| Panel Type | IPS LCD |
| Diagonal Size | 10.1″ |
| Resolution | 1920×1200 |
| Contrast | 1000:1 |
| Colour Depth | 10-bit Processing (8-bit panel) |
| Backlight Type | LED Edgelit |
| Refresh Rate | Synchronizes with input from 48Hz to 60Hz |
| Input Signal | |
| 3G-SDI Input Types | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102 |
| 6G-SDI Input Types | YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 |
| HD-SDI Input Types | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100 |
| SD-SDI Input Types | YCC 4:2:2 @ 10-bits: 480i59.94, 576i52 |
| HDMI Input Types | YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840×2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52 |
| Output Signal | |
| 3G-SDI Output Types | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102 |
| HD-SDI Output Types | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100 |
| SD-SDI Output Types | YCC 4:2:2 @ 10-bits: 480i59.94, 576i52 |
| HDMI Output Types | YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51 |
| Audio Output Types | HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection |
| Power | |
| Connector | 2-Pin Locking Connector |
| Voltage | DC in – 10V minimum to 34V maximum, Battery terminals – 6.0V minimum to 16.8V max |
| Power Supply | Recommend DC 12~15V at ~2.5 amp or greater |
| Battery Types | V Mount, Gold Mount Micro Battery Plates |
| Overload Protection | DC input: Reverse polarity |
| Battery Chemistry | Li-ion |
| Software | |
| Pixel Zoom | 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom |
| Frame Guides | Preset Aspect Ratios & Customizable |
| DSLR Scale | Canon 5DMkii & Canon 7D |
| Custom Scale | Yes (Underscan Only) |
| Anamorphic De-Squeeze | 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x |
| Image Rotate | Automatic or Manual Control |
| Image Flip | Automatic or Manual Control |
| Cross Conversion | Yes: HDMI → SDI & SDI → HDMI |
| Focus Assist | User Adjustable Color Style and Intensity |
| Peaking | User Adjustable Intensity |
| False Color | Rainbow, Arri Style, Custom with up to 10 nodes |
| Zebra | Dual – User Configurable |
| Waveform | Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
| Vectorscope | Yes |
| RGB Parade | Fully User Customizable |
| Histogram | Luma & RGB Style |
| Image Capture | Yes |
| LUTS | – 33pt User LUT instead of 17pt – 33pt Cal LUT instead of 17pt – LUT tool continues to work after removable media containing the LUT has been removed |
| Custom LUTS | – Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu – LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page. – LUT Import: via SD Card or USB Storage Device |
| Color Pipe | – Unique Calibrations may be saved to each Color Pipe – Accurate color processing |
| Overlay | With Opacity Slider and Blink Setting |
| Audio Meters | HDMI & SDI up to 8 channel |
| Multi-View | 2 camera feeds simultaneously |
