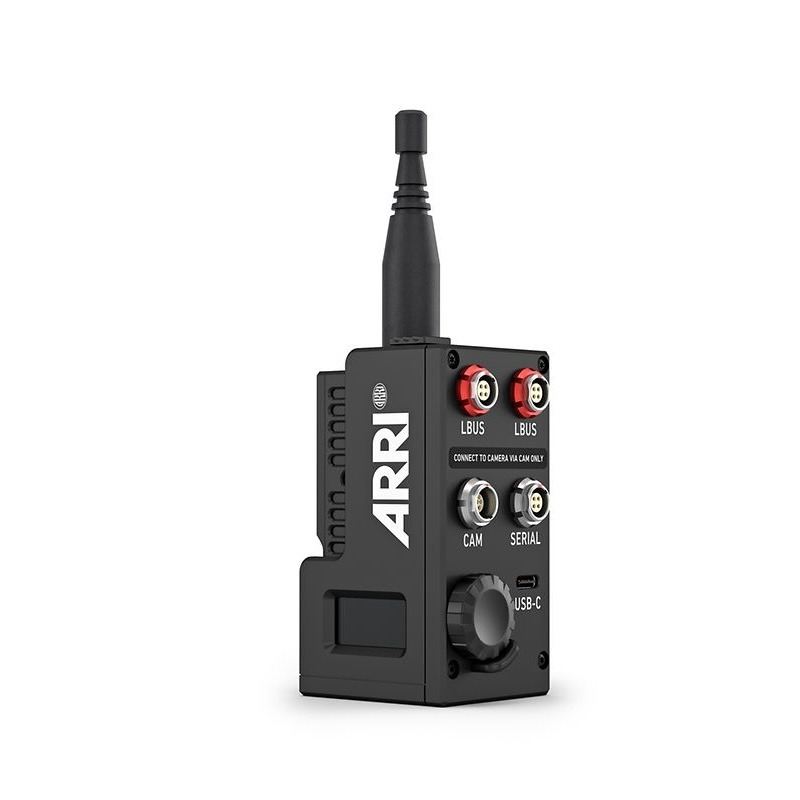

RIA-1 Radio Interface Adapter Set

Universal Connectivity

A hub for the Hi-5 ecosystem.

Capable of functioning as a receiver, transmitter, or motor controller, the RIA-1 Radio Interface Adapter is a highly versatile component in the Hi-5 ecosystem. Compact and robust, it supports ARRI’s exchangeable radio modules and provides multiple connectors for wireless control of ARRI or third-party cameras and lenses.

A true all-rounder

Connectivity

Supports ARRI’s exchangeable radio modules: RF-EMIP, RF-2400, and RF-900 (coming soon)
RX/TX switch: operates either as a receiver or a transmitter
Can connect to a camera for power, start/stop/tally, and camera control, and to LBUS devices for lens control
Compact motor controller
Multiple mounting interfaces: 3/8*, M4

Compatibility

Compatible with any camera
Also compatible with ARRI and cmotion control devices
Supports common distance measurers such as the ARRI UDM-1, Focusbug Cine
RT, and Cine Tape Measure via SERIAL
interface

RIA-1 Cable Guide

Product Code Cable Name		Supported Cameras	Run/Stop?	Camera Control
Product Code Cable Name		Supported Cameras	Run/Stop?	on Hi-5	on WCU-4
K2.0025027	Cable CAM (7p) – LBUS (0.3m/1ft)	ALEXA 35 and ALEXA Mini LF	Yes	Yes	Yes
K2.0015760	Cable CAM (7p) – LBUS (0.5m/1.6ft)	ALEXA 35 and ALEXA Mini LF	Yes	Yes	Yes
K2.0015756	Cable CAM (7p) – EXT (6p) (0.6m/2ft)	AMIRA and ALEXA Mini. For ALEXA Mini LF we recommend CAM to LBUS.	Yes	Yes	Yes
K2.0015755	Cable CAM (7p) – EXT (16p) (0.8m/2.6ft)	ALEXA Classic EV, ALEXA XT EV, ALEXA SXT EV. Only works with ALEXA EV cameras, yes not ALEXA Plus		Yes	Yes
K2.0034580	Cable CAM (7p) – LCS (5p) (0.8m/2.6ft)	ALEXA Plus cameras including ALEXA Plus, ALEXA XT Plus, ALEXA SXT Plus, ALEXA LE, ALEXA 65	Yes	Yes	Yes
K2.0015758	Cable CAM (7p) – RED CTRL/D-Tap (0.6m/2ft)	RED DSMC2 cameras with CTRL port and RED DSMC3 cameras (Komodo/V-Raptor) with module or break-out cable from 9p Lemo EXT connector to RED CTRL connector. Supports run/stop/tally on WCU-4 and Hi-5. Additional RED Camera Control License Key required for further camera control on Hi-5.	Yes	Yes	No
K2.0015757	Cable CAM (7p) – LANC/D-Tap (0.6m/2ft)	Many cameras with a LANC connector including Canon C300/C500 series, Sony FX/FS series, and Blackmagic Ursa Mini Pro	Yes	No	No
K2.0018814	Cable CAM (7p) – Sony Venice/F55 CTRL/D-Tap (0.6m/2ft)	Sony F5/F55 and Sony Venice. Not compatible with Sony Venice 2, Panasonic Varicam, Yes Panasonic Varicam LT		No	No
K2.0047268	Cable CAM (7p) – Sony Remote (8p)/D-Tap (0.8m/2.6ft)	Run/stop/tally for Sony Venice and Venice 2. Additional camera control supported on yes Hi-5 with Sony Camera Control License Key for Hi-5		Yes	No
K2.0015754	Cable CAM (7p) – RS (0.3m/1ft)	Run/stop/tally on all ARRI Cameras and any camera that supports run/stop via a 3p Fischer connector. Can also be used power the RIA-1 without any camera connection	Yes	No	No
K2.0018813	Cable CAM (7p) – D-Tap (0.5m/1.6ft)	For powering the RIA-1 without any camera connection	No	No	No
K2.0023832	Cable CAM (7p, f) – CAM (7p, m) (0.3m/1ft)	Extension cable for any CAM cable	N/A	N/A	N/A
K2.0015759	Cable CAM (7p) – ENG (12p) (0.3m/1ft)	Can be used to inject lens metadata into Sony Venice and Venice 2 LENS connector	N/A	N/A	N/A
K2.0044396		Cable CineTape – SERIAL(4p) (0.8m/2.6ft) Connects CineTape to 4p SERIAL connector on RIA-1 and ALEXA 35	N/A	N/A	N/A
K2.0041172	Cable UDM – SERIAL (4p) (0.8m/2.6ft)	Connects UDM-1 to SERIAL connector on RIA-1 and ALEXA 35	N/A	N/A	N/A
K2.0025324	Cable UDM – SERIAL (4p) (0.5m/1.5ft)	Connects UDM-1 to SERIAL connector on RIA-1 and ALEXA 35	N/A	N/A	N/A
N/A	Cine RT to ARRI RIA-1 / ALEXA 35	Connects Focusbug Cine RT to SERIAL connector on RIA-1 and ALEXA 35. Available only from Focusbug	N/A	N/A	N/A

Note: Sony and RED Camera Control Licenses required for camera control on Hi-5. ALEXA Remote License Key required for ALEXA/AMIRA camera control on WCU-4.
