Name: CF7 Fresnel and Barn Doors Kit
Brand: CF7 Fresnel and Barn Doors Kit
Price: 25.00 GBP
Availability: InStock
Rating: 5 (1 reviews)

7″ Bowens mount fresnel with barn doors for STORM 400x

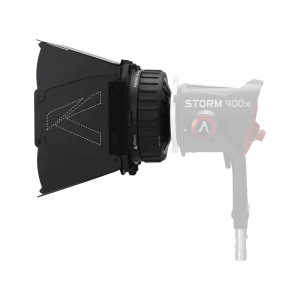

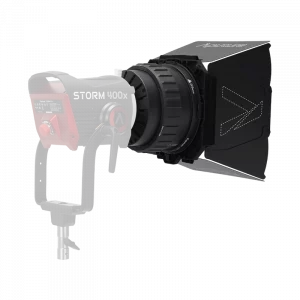

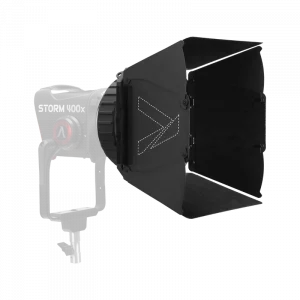

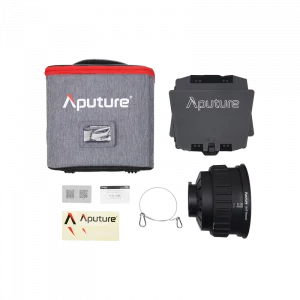

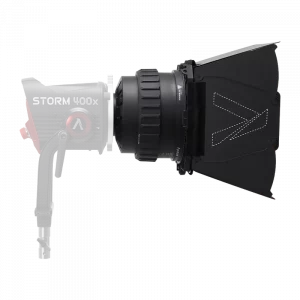

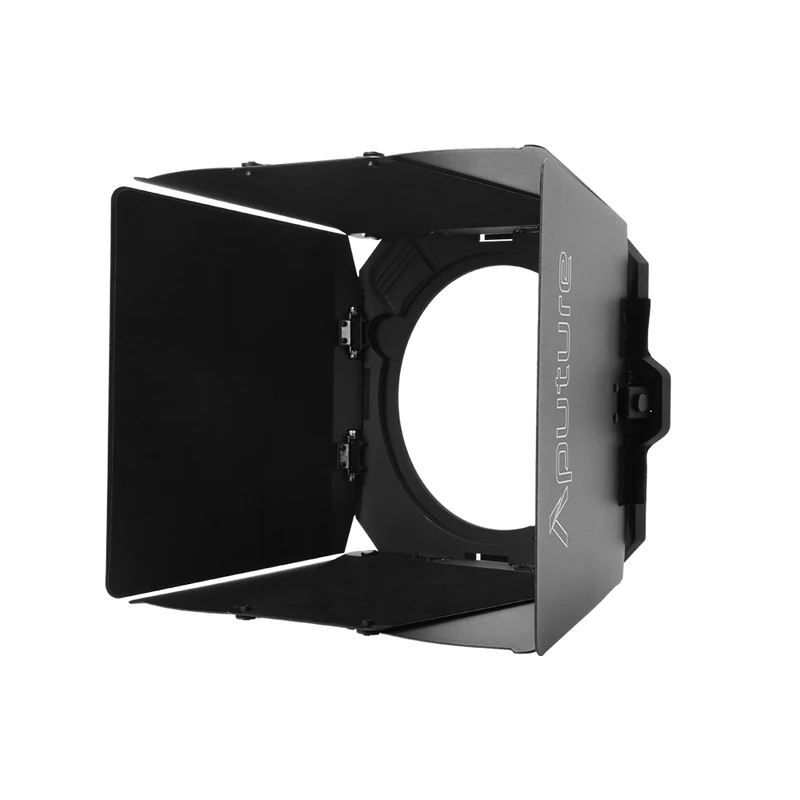

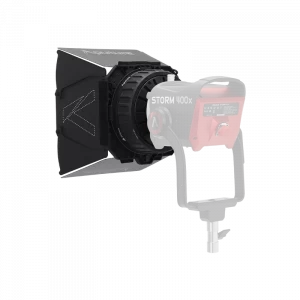

The CF7 Fresnel with Barn Doors Kit is a 7 inch Bowens mount fresnel with included 8-leaf barn doors. It offers a beam range of 15º to 40º while maintaining a compact profile. The dual-expanding focusing system with multiple lens elements drastically reduces size and weight without compromising optical performance. The compact design is optimized for use with the STORM 400x.

Compatible with Aputure Storm 400x lights.

CF7 Fresnel and Barn Doors Kit Photometrics

CCT	Dis.	15º Spot	40º Flood
1,800K	1m	179,800 lux 16,703 fc	40,600 lux 3,772 fc
1,800K	3m	17,700 lux 1,644 fc	4,780 lux 444 fc
3,200K	1m	225,200 lux 20,921 fc	51,000 lux 4,738 fc
3,200K	3m	22,210 lux 2,063 fc	6,020 lux 559 fc
4,300K	1m	237,300 lux 22,045 fc	53,900 lux 5,007 fc
4,300K	3m	23,470 lux 2,180 fc	6,400 lux 595 fc
5,600K	1m	236,700 lux 21,989 fc	53,900 lux 5,007 fc
5,600K	3m	23,260 lux 2,161 fc	6,380 lux 593 fc
6,500K	1m	228,700 lux 21,246 fc	52,700 lux 4,896 fc
6,500K	3m	22,690 lux 2,108 fc	6,240 lux 580 fc
10,000K	1m	225,200 lux 20,921 fc	4,784 fc
10,000K	3m	22,110 lux 2,054 fc	6,100 lux 567 fc
20,000K	1m	212,600 lux 19,751 fc	48,500 lux 4,506 fc
20,000K	3m	20,760 lux 1,929 fc	5,740 lux 533 fc

CF7 Fresnel and Barn Doors Kit Specifications

CF7 Fresnel and Barn Doors Kit Specifications
Beam Angle Full Spot	15º
Beam Angle Full Flood	40º
Dimensions
CF7 Fresnel	ф22.4 x 10.5cm, ф8.81 x 4.13in
CF7 Barn Doors	27.6 x 25.9 x 4.5cm, 10.9 x 10.2 x 1.8in
Carrying Case	34.5 x 21.0 x 32.2cm, 13.6 x 8.3 x 12.8in
Weight
CF7 Fresnel	1.35kg / 2.98lbs
CF7 Barn Doors	0.95kg / 2.09lbs
Carrying Case	1.39kg / 3.06lbs
