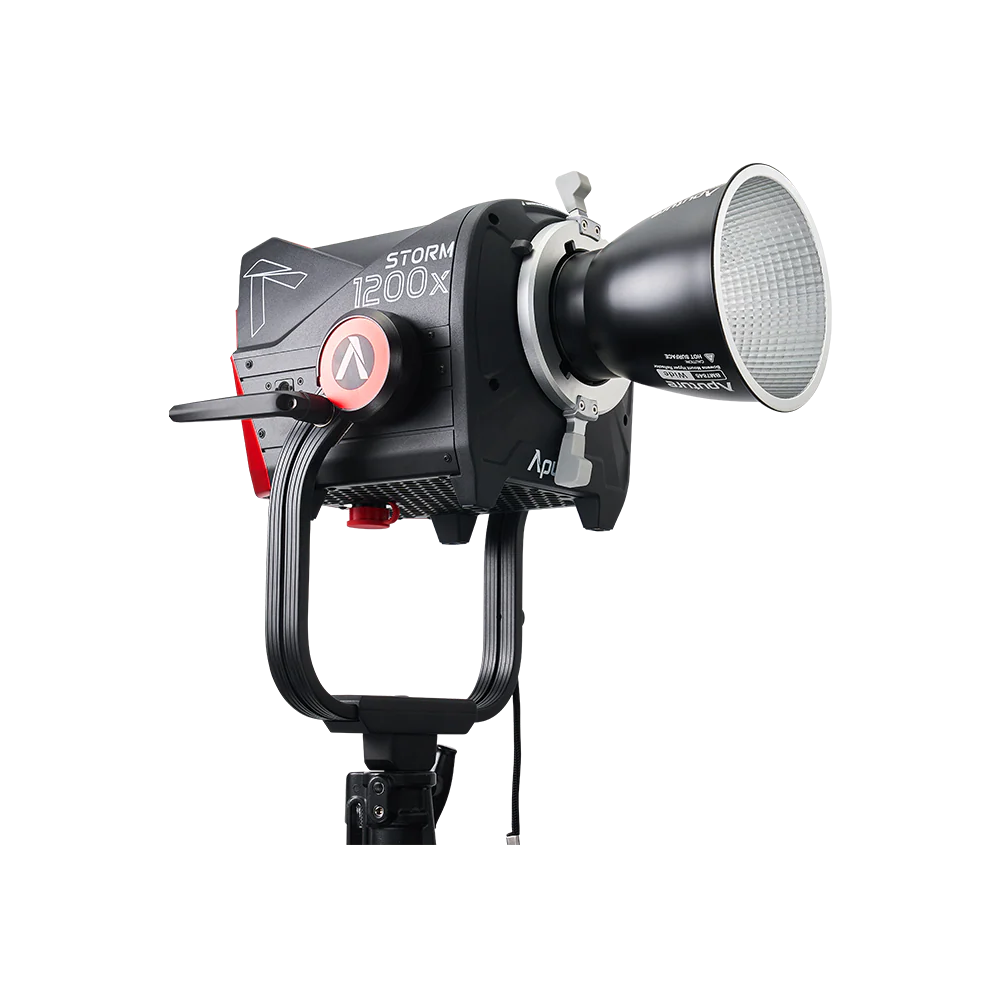

The Aputure Storm 1200x
1,200W tuneable white high fidelity point source lamp with ProLock Bowens Mount
Enrich your subject with this 1,200W lamp featuring the BLAIR light engine for breakthrough color accuracy.
Next Generation Light
The Aputure STORM 1200x utilizes the BLAIR (Blue/Lime/Amber/Indigo/Red) light engine, delivering the highest quality white light and greatest +/- green adjustability of any LED technology. The BLAIR light engine’s indigo emitters enhance fluorescing materials like natural daylight and tungsten sources.
Colour Tuning Control
The revolutionary BLAIR light engine can also output saturated colours across more than 70% of Rec.2020 color space using Limited HSIC+ and x,y control modes. Achieve deep crimson sunsets, rich sodium vapor ambers, and subtle color effects without gels.
ProLock Locking Bowens Mount
The ProLock Locking Bowens mount holds modifiers and optics rigidly in place. On STORM lamps, even the heaviest modifiers stay secure and properly aligned.
Introducing BLAIR
The STORM 1200x utilizes a new BLAIR five-color (Blue/Lime/Amber/Indigo/Red) light engine to better fill out the color spectrum while offering greater adjustability.
Introducing BLAIR
The STORM 1200x utilizes a new BLAIR five-color (Blue/Lime/Amber/Indigo/Red) light engine to better fill out the color spectrum while offering greater adjustability.
Experience Full Spectrum
The calibrated indigo enhances fluorescing materials, resulting in a higher quality white light that better matches natural daylight and Blackbody sources such as tungsten quartz, CRI 95+, SSI [P3200]): 87, SSI (CIE D5600): 87.
Experience Full Spectrum
The calibrated indigo enhances fluorescing materials, resulting in a higher quality white light that better matches natural daylight and Blackbody sources such as tungsten quartz, CRI 95+, SSI [P3200]): 87, SSI (CIE D5600): 87.
See the Difference
We compared the color response for natural daylight, a traditional bi-color LED, and the STORM 1200x together and found huge, but subtle differences in the objects that fluoresce.
See the Difference
We compared the color response for natural daylight, a traditional bi-color LED, and the STORM 1200x together and found huge, but subtle differences in the objects that fluoresce.
Best Colour Adjustability
The BLAIR light engine enables the STORM 1200x to offer a greater range of CCT than traditional bi-colors and is the first light of its kind to offer 100% +/- green control, the full ASC MITC range of adjustment.
Best Colour Adjustability
The BLAIR light engine enables the STORM 1200x to offer a greater range of CCT than traditional bi-colors and is the first light of its kind to offer 100% +/- green control, the full ASC MITC range of adjustment.
Introducing xy Control
The STORM 1200x has so much color range Aputure has even added an x,y coordinate mode for greater precision control.
Introducing xy Control
The STORM 1200x has so much color range Aputure has even added an x,y coordinate mode for greater precision control.
Precision Low-End Dimming
Bit-depth control is increased for improved low-end dimming. This enables the STORM 1200x to use PWM dimming all the way down to 0.1% without shifts or dropoff. Color accuracy is maintained throughout the brightness range, even at extreme low brightness levels.
Precision Low-End Dimming
Bit-depth control is increased for improved low-end dimming. This enables the STORM 1200x to use PWM dimming all the way down to 0.1% without shifts or dropoff. Color accuracy is maintained throughout the brightness range, even at extreme low brightness levels.
ProLock Locking Bowens Mount
The STORM lights feature the ProLock Locking Bowens Mount, a more secure clamping design for attaching modifiers. Bowens accessories are held rigidly in place and precision optics such as fresnels and spotlight projectors are precisely aligned with the light engine.
ProLock Locking Bowens Mount
The STORM lights feature the ProLock Locking Bowens Mount, a more secure clamping design for attaching modifiers. Bowens accessories are held rigidly in place and precision optics such as fresnels and spotlight projectors are precisely aligned with the light engine.

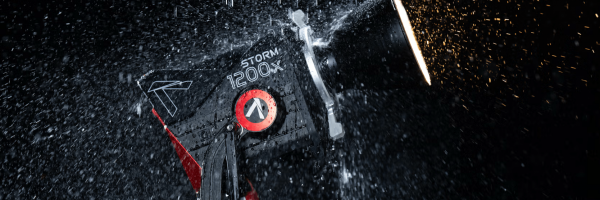

IP65 Weather Protection
Head-to-toe IP65 dust and weather protection means the STORM 1200x can work in extreme environments. Seals on every connector and around components allow not only the lamphead but also the control box and cabling to be used outside in the rain.
IP65 Weather Protection
Head-to-toe IP65 dust and weather protection means the STORM 1200x can work in extreme environments. Seals on every connector and around components allow not only the lamphead but also the control box and cabling to be used outside in the rain.

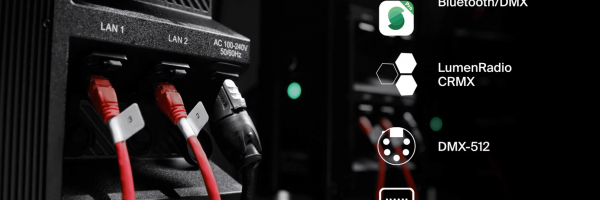

Every Control Option Out There
The STORM 1200x features all of the professional connectivity options used in modern lighting: CRMX, DMX512 in and out, sACN and Art-Net over etherCON, and Sidus Mesh.
Every Control Option Out There
The STORM 1200x features all of the professional connectivity options used in modern lighting: CRMX, DMX512 in and out, sACN and Art-Net over etherCON, and Sidus Mesh.
Photometrics
CCT |
Dis. |
No Reflector |
15° Reflector |
30° Reflector |
45° Reflector |
| 2,500K | 3m | 6,570 lux / 611 fc | 74,000 lux / 6,877 fc | 32,200 lux / 2,993 fc | 15,300 lux / 1,422 fc |
| 2,500K | 5m | 2,510 lux / 233 fc | 25,600 lux / 2,379 fc | 10,900 lux / 1,013 fc | 5,420 lux / 505 fc |
| 3,200K | 3m | 8,370 lux / 778 fc | 94,600 lux / 8,792 fc | 41,100 lux / 3,820 fc | 19,500 lux / 1,812 fc |
| 3,200K | 5m | 3,170 lux / 778 fc | 30,900 lux / 2,872 fc | 13,800 lux / 1,283 fc | 6,910 lux / 642 fc |
| 4,300K | 3m | 8,620 lux / 801 fc | 97,400 lux / 9,052 fc | 42,400 lux / 3,941 fc | 20,100 lux / 1,868 fc |
| 4,300K | 5m | 3,280 lux / 305 fc | 33,600 lux / 3,123 fc | 14,300 lux / 1,329 fc | 7,130 lux / 663 fc |
| 5,600K | 3m | 8,490 lux / 789 fc | 96,100 lux / 8,931 fc | 41,800 lux / 3,885 fc | 22,500 lux / 2,090 fc |
| 5,600K | 5m | 3,230 lux / 300 fc | 33,300 lux / 3,095 fc | 14,100 lux / 1,310 fc | 7,070 lux / 657 fc |
| 6,500K | 3m | 8,370 lux / 778 fc | 94,700 lux / 8,801 fc | 41,200 lux / 3,829 fc | 19,500 lux / 1,812 fc |
| 6,500K | 5m | 3,180 lux / 296 fc | 32,700 lux / 3,039 fc | 13,900 lux / 1,292 fc | 6,910 lux / 642 fc |
| 7,500K | 3m | 8,200 lux / 762 fc | 92,800 lux / 8,625 fc | 40,400 lux / 3,755 fc | 19,100 lux / 1,775 fc |
| 7,500K | 5m | 3,120 lux / 290 fc | 32,000 lux / 2,974 fc | 13,600 lux / 1,264 fc | 6,800 lux / 632 fc |
| 10,000K | 3m | 7,790 lux / 724 fc | 87,900 lux / 8,169 fc | 38,400 lux / 3,569 fc | 18,200 lux / 1,691 fc |
| 10,000K | 5m | 2,960 lux / 275 fc | 30,400 lux / 2,825 fc | 12,900 lux / 1,199 fc | 6,470 lux / 601 fc |
| Specifications | |
| LED Chipset | BLAIR |
| CCT | 2,500K – 10,000K |
| Green-Magenta Adjustment Range | ±G 100% (Full ASC MITC Range) |
| CRI | ≥95 (3,000K) |
| TLCI | ≥95 (3,200K) |
| CQS | ≥94 |
| SSI (Tungsten) | 87 |
| SSI (D56) | 87 |
| TM-30 RF (Average) | 95 |
| TM-30 RG (Average) | 100 |
| Max Power Consumption | 1550W |
| Max Power Output | 1200W |
| Weather Resistance Rating | IP65 |
| Included Reflector Beam Angle | 45° |
| Operating Voltage | 100V ~ 240V / 50-60 Hz |
| Operating Temperature | -20°C ~ 45°C / -4°F ~ 113°F |
| Storage Temperature | -40°C ~ 80°C / -40°F ~ 176°F |
| Lamp Head Fan Noise Levels | |
| Smart Mode | 52 dBA |
| High Mode | 43 dBA |
| Medium Mode | 34.4 dBA |
| Low Mode | 31 dBA |
| Silent Mode | 0 dBA |
| Max Control Box Noise Level All Modes | 28.5 dBA |
| Dimensions | |
| Lamp Head (Without Yoke) | 33.4 x 33.6 x 25.0cm 13.2 x 13.2 x 9.8in |
| Lamp Head (With Yoke) | 33.4 x 33.6 x 55.7cm 13.2 x 13.2 x 21.9in |
| Control Box | 13.6 x 18.9 x 34.4cm 5.4 x 7.4 x 33.2in |
| Dimensions | |
| Lamp Head with Yoke | 9.50kg – 20.94lbs |
| Control Box | 5.92kg – 13.05lbs |
| Head Cable | 1.81kg – 3.99lbs |
| AC Power Cable | 0.65kg – 1.43lbs |
| Control Methods | |
| Data Ports | 1x 5-Pin DMX In, 1x 5-Pin DMX Out, 2x LAN |
| Control Methods | On-board, Sidus Link App, Sidus Link Pro App, DMX/RDM, CRMX, sACN & Art-Net, Sidus Link Pro Auto-Patching and Auto-Configuration |
| Firmware Upgradeable | Sidus Link, Sidus Link Pro, USB Drive |
| Wireless Range Sidus Bluetooth | ≤100m / ≤262.5ft |
| Wireless Range CRMX (TimoTwo) | ≤100m / ≤262.5ft |
